This article is for V2 and V1 3D scanners.

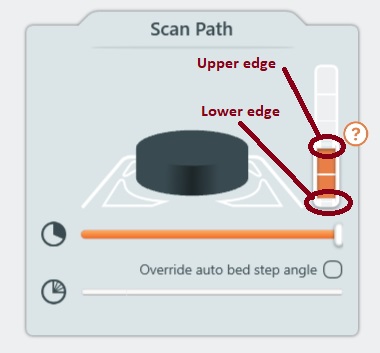

The Scan Path toolbox gives you the ability to choose how much, or little, of your object will be scanned.
- Height: The vertical slider sets how high the camera head will move - each block of the slider represents another height at which the camera head will stop to complete a bed rotation (or pass) to capture points. Note that the lower blocks do not have to be selected - a scan can start at any height. Click the upper and lower edges of the slider to adjust the starting and ending position.
- Degree: The horizontal slider sets the degree of bed rotation for each pass (45° minimum). Moving this slider will restrict the scan bed’s rotation in order to scan only a portion of an object.
Click Scan when you’re happy with your settings.
If unsure of the appropriate scan path height for your object, leave the slider full and cancel the scan’s progress when your object is completely scanned. It will load in the Project Editor as is.
